High Voltage Lithium Battery Solution for UPS

80kVA UPS & Power Distribution System with 96kWh High-Voltage Lithium Battery for Data Centers

This customized solution is engineered to deliver uninterrupted and stable power for data center environments, ensuring continuous operation of mission-critical network and communication equipment.

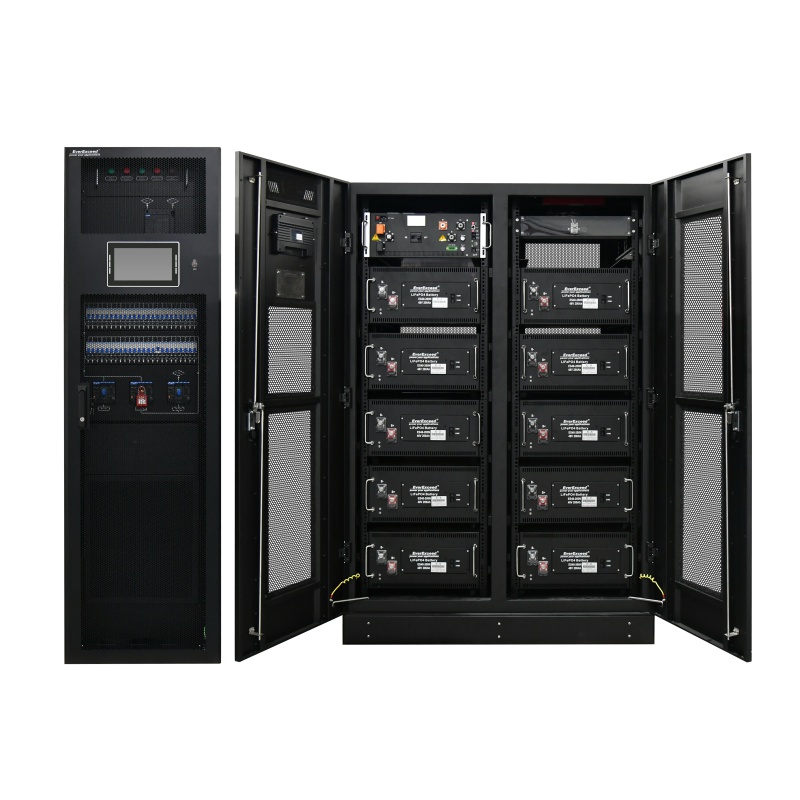

Based on an intelligent modular UPS platform, EverExceed’s PRM PLUS integrated power distribution system consolidates the UPS, utility ATS, UPS input and output distribution, IT load distribution, and auxiliary power distribution into a single cabinet. Through advanced communication and coordinated control between the UPS and the high-voltage lithium battery system, real-time status monitoring and precise power management are achieved. This intelligent interaction significantly enhances compatibility between the lithium battery and the UPS, optimizing charging and discharging behavior, improving overall system stability, and delivering high reliability, simplified maintenance, and efficient space utilization for modern data center applications.

  • brand:

    EverExceed
  • Rated voltage(V):

    480V
  • Rated capacity(Ah):

    200Ah
  • Features
  • TECHNICAL DATA
  • SUCCESSFUL CASES
  • Download
  • Factory
  • Video
  • FAQ

The integrated and modular power architecture delivers high power density and exceptional flexibility for data center applications. Its compact all-in-one design significantly reduces system footprint and installation complexity, enabling faster deployment while maximizing valuable data center space. High-efficiency operation further lowers energy consumption and operating costs, supporting long-term, sustainable performance.



With intelligent monitoring and centralized management, the system provides full visibility and control across the entire power supply chain. Built-in communication and coordinated control between the UPS and lithium battery system ensure precise power regulation and stable operation, enhancing system reliability and delivering dependable power protection for mission-critical loads.



Topology PWM/IGBT
Model PRM PLUS80/20-i + Power distribution system
Rated power 20kVA/20kWMaximum
expandable 80KW
Input voltage 400VAC,3P +N+G
Output voltage 400VAC,3P +N+G
Frequency 50HZ
IP class IP20
Battery Model Lithium battery: ES48-200N (48V 200Ah)
Battery voltage ±240VDC
Float Voltage 540V-564V
Boost / Equalize Voltage 564V-588V
Charging current Whole machine power 20%
Efficiency 96%

If you need to download files, you need to register as our member first ! log in / registered

  • Middle East_ 80kVA PRM Plus UPS & Power distribution system for Data Center V1.0 20260119.pdf
