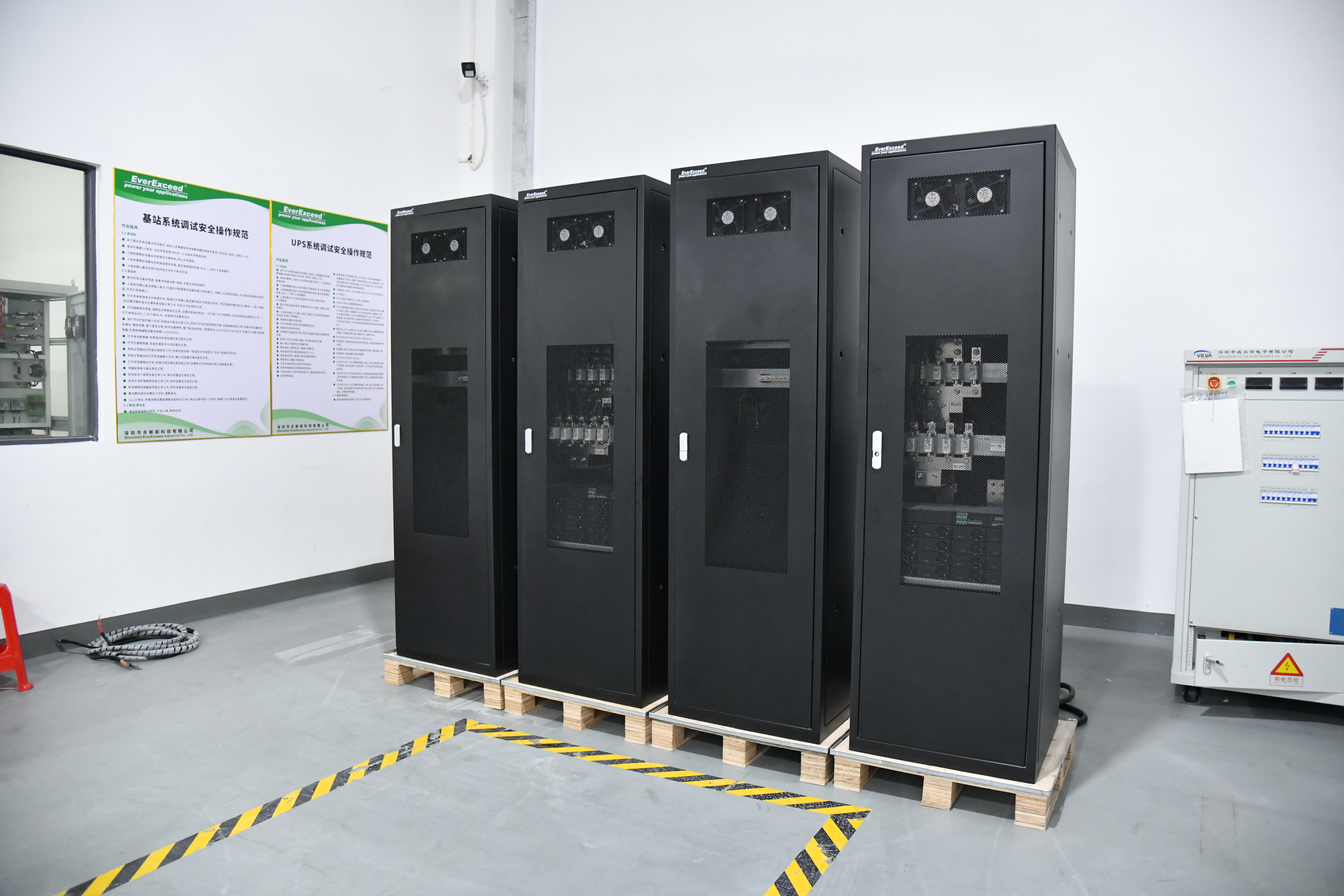

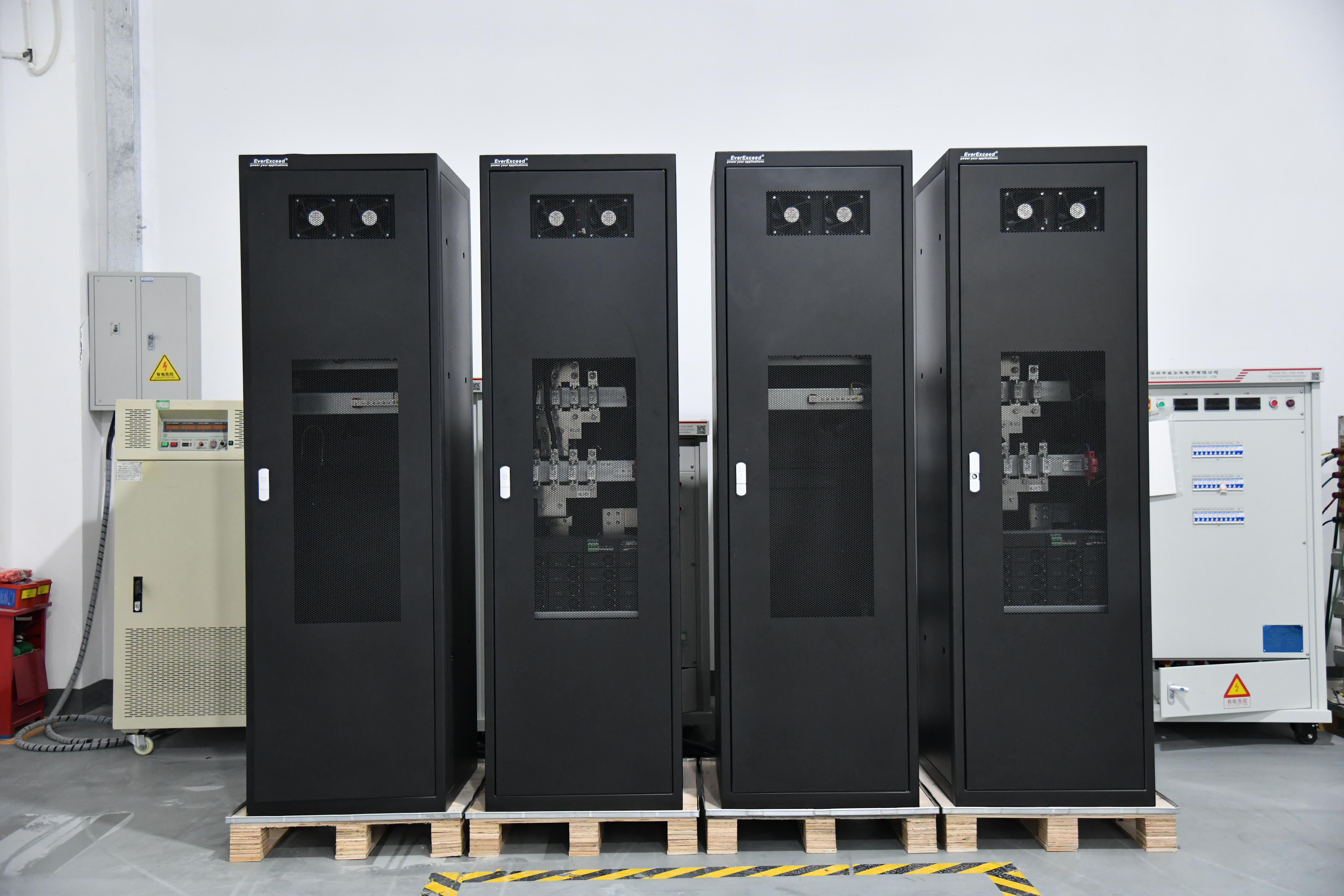

Customized for a data center upgrade project in Ghana, EverExceed provided a -48VDC 1200A DC Power System to replace aging 48V DC power supply units.The existing equipment had been in operation for years and could no longer fully meet the reliability requirements of modern data center operations. EverExceed developed a customized high-capacity DC power solution with improved protection, cooling performance and intelligent monitoring to ensure stable power support for critical data center loads.
--

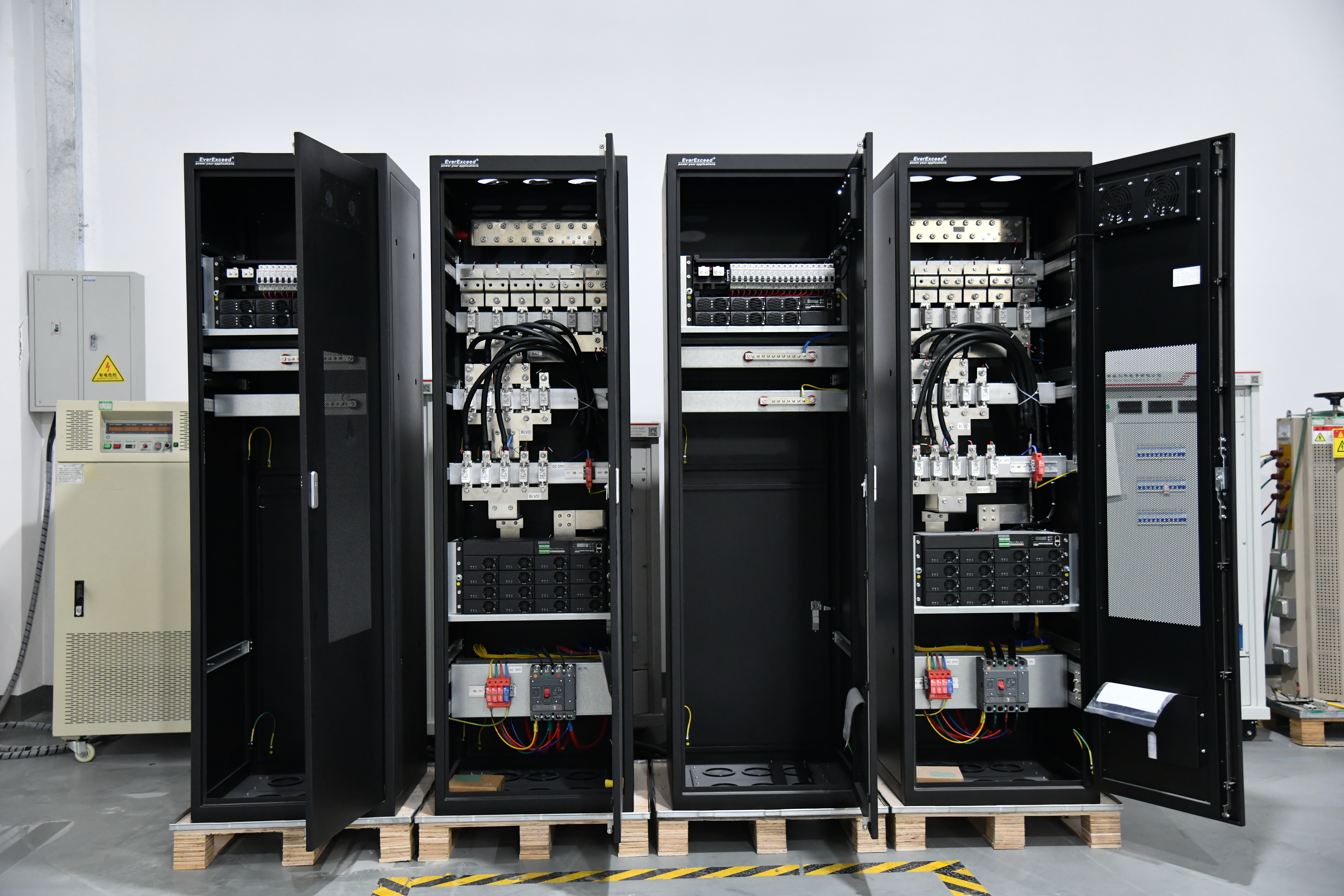

The EverExceed ESB Series DC Power System is designed as an integrated DC power platform for critical applications.The system combines rectifier modules, intelligent monitoring and DC distribution in one cabinet, providing reliable 48V DC power for data centers, telecom networks and other applications with easy maintenance and flexible configuration.
●
High-Capacity 48V DC Power Supply:
The -48VDC1200A system delivers 48V/1200A output with up to 64kW power capacity, supporting high-density data center DC loads and simplifying the overall power architecture.
● Hot-Swappable Rectifier Module Design:
The modular rectifier design supports online replacement without interrupting DC output. With multiple protection functions, ≤±1% voltage regulation accuracy, ultra-low ripple noise and up to 99% system availability, it improves power reliability and reduces downtime risks.
● Multi-Level DC Distribution Battery Protection:
The system integrates independent battery and load protection with 630A battery fuse, 400A and 250A load branches, and BLVD function to prevent battery over-discharge and improve safety.
● Intelligent Monitoring Remote Communication:
The integrated monitoring unit provides real-time status of DC output, rectifier modules, batteries and cabinet temperature. RS485 and SNMP communication enable remote monitoring and management.
● Optimized Cooling Design:
Designed for high-temperature environment, the system adopts enhanced airflow design and industrial-grade wide-temperature components, supporting stable full-load operation from -10°C to +55°C. The optimized thermal design helps control temperature rise, extend equipment service life and reduce maintenance requirements in harsh environments.
● Enhanced Surge Safety Protection:
AC/DC SPD protection and multiple safety functions including over-voltage, over-current and short-circuit protection help protect critical DC loads from power fluctuations and surge impacts.
As a global manufacturer of customized AC/DC power solutions, EverExceed has 20+ years of battery manufacturing experience and 10+ years of system integration experience.EverExceed provides customized rectifier systems, 48V DC power systems and telecom power solutions for data centers, telecom networks, substations and industrial applications worldwide.
