This project is to provide uninterruptible power supply for the oil and gas field industrial equipment in Indonesia. lt was required a reliable UPS system to ensure continuous and stable power for its critical industrial equipment. The equipment had to meet the challenges of harsh environmental conditions while maintaining operational efficiency and reliability for core processes.
Recommended Solution

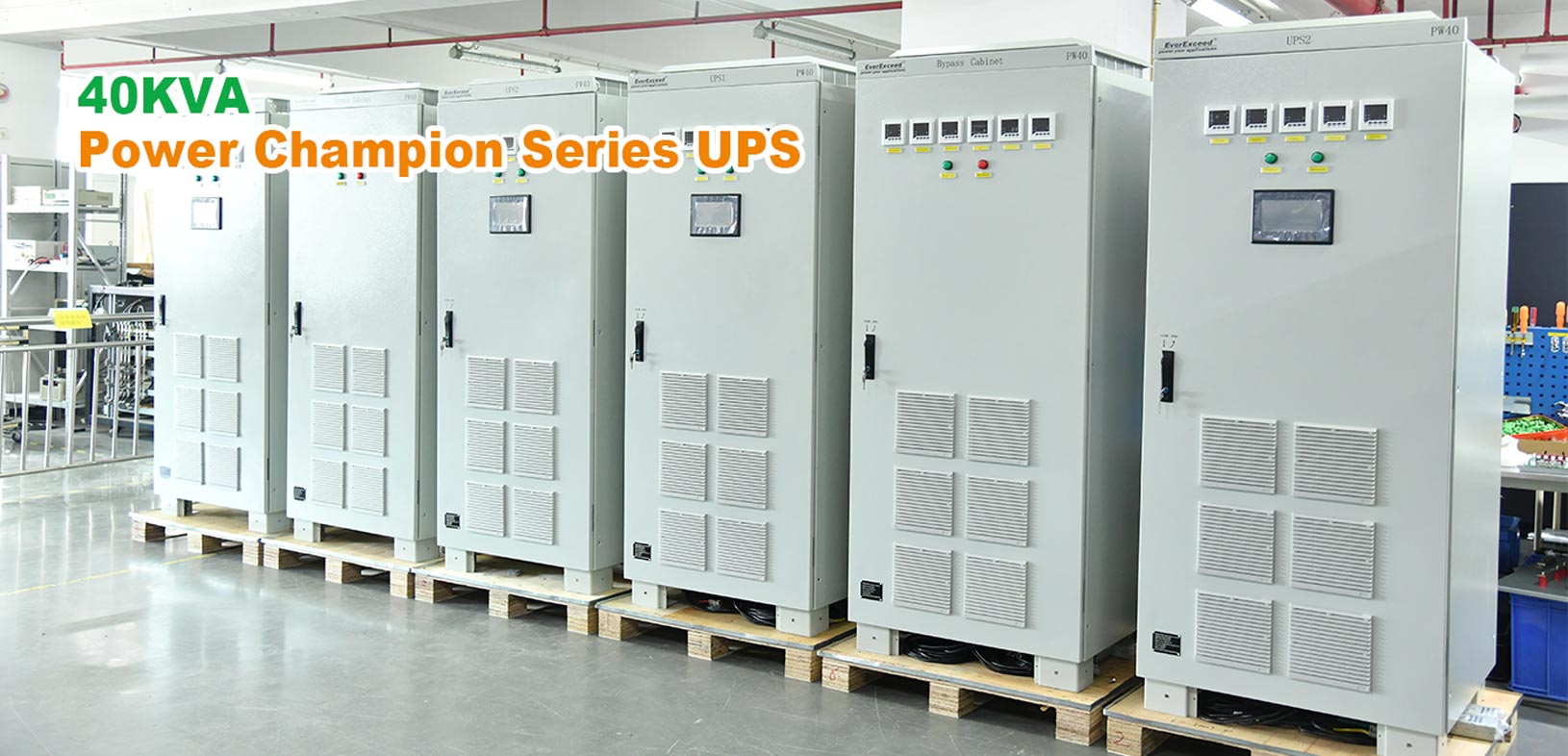

To address the customer's needs,we recommended the 40kVA PowerChampion Series UPS, equipped with advanced features to ensure maximum reliability and adaptability for industrial applications.
Custom design highlight:
Microprocessor Control: Utilizes voltage/current stepping technology with soft start function, minimizing grid impact and suitable for large-scale UPS and backup generator scenarios.
High Reliability: Features built-in input, output, and bypass isolation transformers; employs modular lGBT and SCR components for superior reliability.
Strong lmpact Resistance: Adopts pulse-by-pulse current limiting technology to keep short-circuit current within a safe range.
Flexible Customization:Supports customization of input/output voltage, phase, frequency, IP rating, and charging current to meet various application needs.
Integrated Design: Employs a low-fuse design with circuit breakers, contactors, and static switches to enhance system reliability.
Adaptability to Harsh Environments: Suitable for dusty, high-temperature, pest-prone, and earth quake-affected areas,ensuring protection for critical production processes.
Parallel Operation: Supports parallel operation of up to 6 units with advanced distributed active parallel technology.
Advanced Battery Management: Extends battery life by 30%-50% with intelligent charge/discharge management， temperature-based voltage compensation, and comprehensive battery status monitoring every 200 hours.
The Power Champion Series UPS offers a perfect blend of advanced technology, reliability, and adaptability, making it an ideal choice for demanding industrial applications. We are confident that this solution will enhance the operational efficiency of this project critical systems.
