Custom sign highlights:

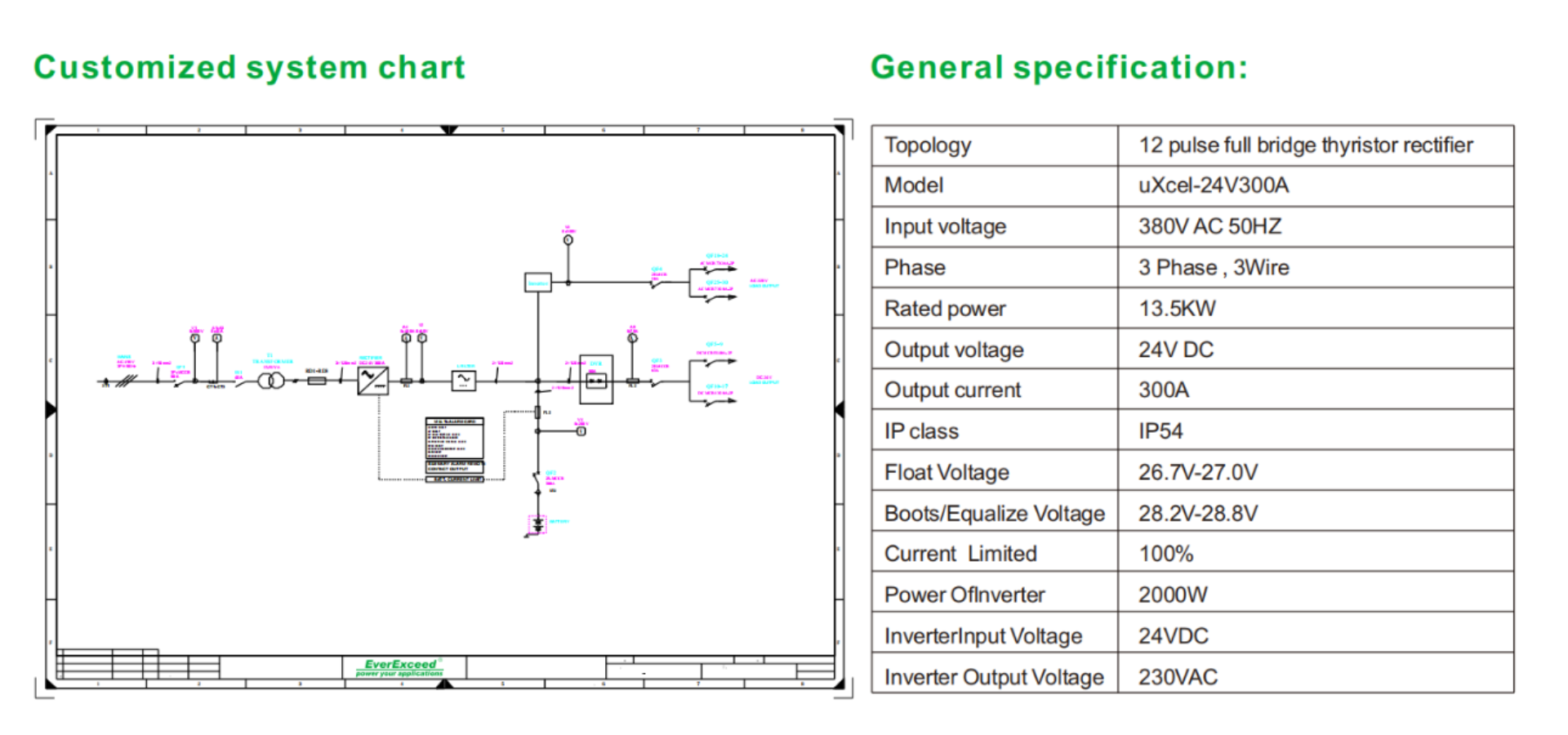

1.Flexible customization: Adopt 12-pulse design, configured with filtering electrolytic capacitors and input EMl configuration, to ensure that the output ripple <5%, THi<15%, as well to achieve a high power factor and low harmonic output requirements;

2.Safe and reliable: There are 2 high-power cooling fans added on the top of the cabinet, which can effectively solve the cooling problem of large loads so that the battery charger can operate normally under high loads for a long time. The inverter has been customized to provide AC power (230VAC) with reliable output; The DC power supply is also customized with a step-down silicon chain that can provide reliable DC power to precision loads;

3.Flexible capacity increase: The modular design of the unit allows any combination or expansion of the charger's functions and protection which better and conveniently meets the customer's customization needs;

4.Simplified structural design: lt is easy to install, overhaul, dismantle.and can be quickly recovered. The base of the cabinet is raised to 300mmto makeit easier to access or exit the cable;

5.Unique appearance design: With lP54 spray SS316L cabinet, the chargers have higher corrosion resistance and security. lt is not susceptible to moisture, condensation, dust, pollution, etc. Furthermore, we customize cabinets in the original color as customer's need.
