UPS lithium battery

UL Certified 512V 25.6kWh / 51.2kWh UPS Lithium Battery System – High Voltage Backup for Critical Loads

EverExceed high voltage LiFePO4 (lithium iron phosphate) battery is a new environment-friendly backup power module specially designed for UPS power systems. With an advanced life span, extra compact size, very lightweight, and strong environmental working conditions, besides indoor, it is also the ideal solution for the outdoor harsh environment found in the field, where the UPS are installed and used.




  • brand:

    EverExceed
  • Model:

    ES512-25NH/ ES512-50NH/ ES512-100NH
  • Rated voltage(V):

    512V
  • Rated capacity(Ah):

    25Ah/ 50Ah/ 100Ah
  • Certificates:

    UN 38.3; CE
  • OEM/ODM Service:

    Yes, customized service available
  • Usage:

    UPS / Data Center
  • Features
  • TECHNICAL DATA

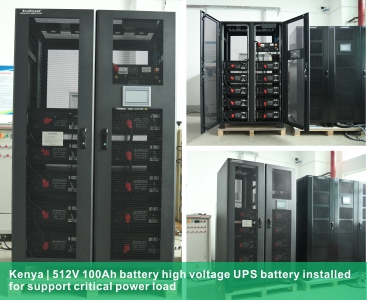

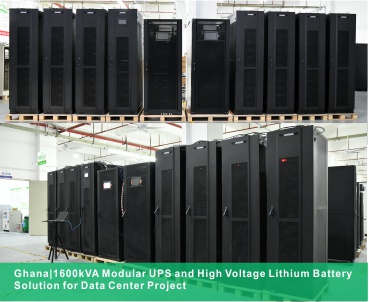

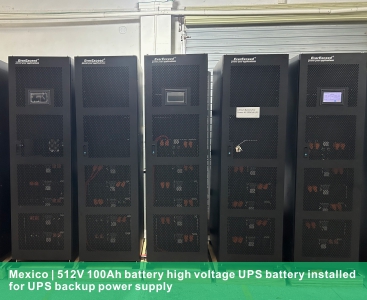

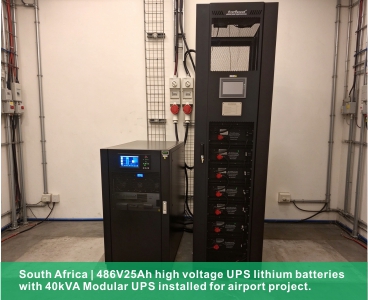

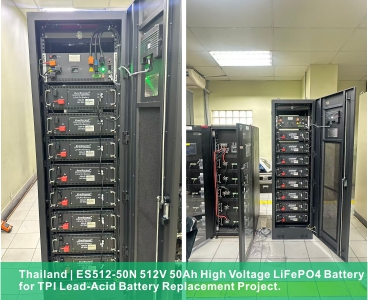

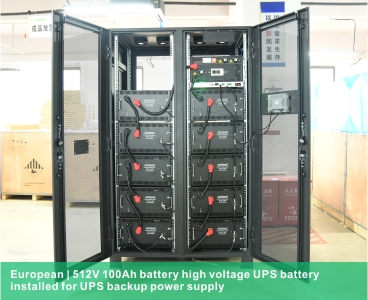

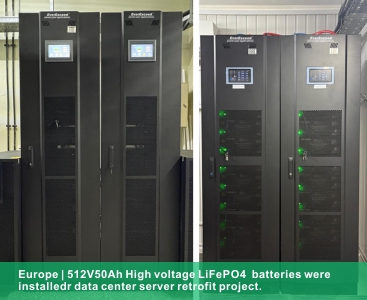

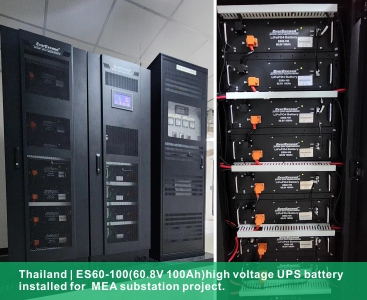

  • SUCCESSFUL CASES
  • Download
  • Factory
  • Video
  • FAQ

UL Certified 512V 25.6kWh / 51.2kWh UPS Lithium Battery System – High Voltage Backup for Critical Loads






Four-layer safety protection with LiFePO4 cells, smart BMS, and dual built-in fire extinguishers ensures ultimate home energy safety.



Delivers ultra-fast 8C discharge, wide UPS compatibility, and long backup time with Grade A LiFePO4 cells for high reliability and performance.





Achieve better TCO with up to 5000 cycles, 70% space savings, and 80% lower maintenance costs compared to lead-acid batteries.



Basic Specification
Nominal Voltage 512V(±256V)
Nominal Capacity 25Ah 50Ah 50Ah 100Ah 100Ah 200Ah
Energy 12.8KWh 25.6KWh 25.6KWh 51.2KWh 51.2KWh 102.4KWh
Charging
Maximum Charging Voltage 552V 552V 552V 552V 552V 552V
Maximum Charging Current 25A 50A 50A 100A 100A 100A
Discharging
Voltage Range 448V~552V 448V~552V 448V~552V 448V~552V 448V~552V 448V~552V
Maximum Continuous Discharging Current 100A 100A 200A 400A 600A 200A
Cut-off Voltage 448V~464V 448V~464V 448V~464V 448V~464V 448V~464V 448V~464V
Battery Module
Nominal Voltage 64V 64V 64V 64V 64V 51.2V
Nominal Capacity 25Ah 50Ah 50Ah 100Ah 100Ah 200Ah
Quantity 8 8 8 8 8 10
Others
Cycle life  >6000 Cycles@80%DOD@25
Maximum number of parallel connections 8
Fire Protection Battery module-level and Cabinet-level
Protection Over temperature, Over current, Short circuit, Over charge/discharge, etc.
Communication Interface CAN, RS485, Dry contacts,TCP/IP,SNMP
Temperature Charging: 0~45°C, Discharging: -20°C~60°C
Dimension (W*D*H) 600*800*2000mm 600*1000*2000mm 600*900*2200mm 1200*800*1800mm
Weight 400±50KG 650±50KG 750±50KG 950±90KG 1250±120KG




If you need to download files, you need to register as our member first ! log in / registered

  • ES512-100NH (600A).pdf

Datasheet



What is the difference in charging time?
Faster charging times are beneficial if you need backup power to be restored quickly. EverExceed UPS lithium battery fully meets the needs of use.

How do the lifespan and cycle life compare?
These factors will impact the long-term maintenance and replacement costs.

What are the differences in physical size and weight?
Understand the dimensions and weight of each UPS system to ensure it can be accommodated in your available space.    Consider if you need a compact and lightweight solution or if you have ample room for a larger unit.

What are the safety considerations?
Inquire about the safety mechanisms and protections incorporated into each UPS system to prevent issues such as overcharging, short circuits and thermal events.    This is crucial for the reliable and secure operation of the UPS.

How do your equipment requirements align with each UPS?
Ensure that the UPS type is compatible with the power requirements, voltage compatibility, and interfaces of your existing equipment.

What type of support is needed for each battery technology?
Understand the level of technical support and maintenance services offered for each battery type and ensure that you can obtain reliable support throughout the lifespan of the UPS.
