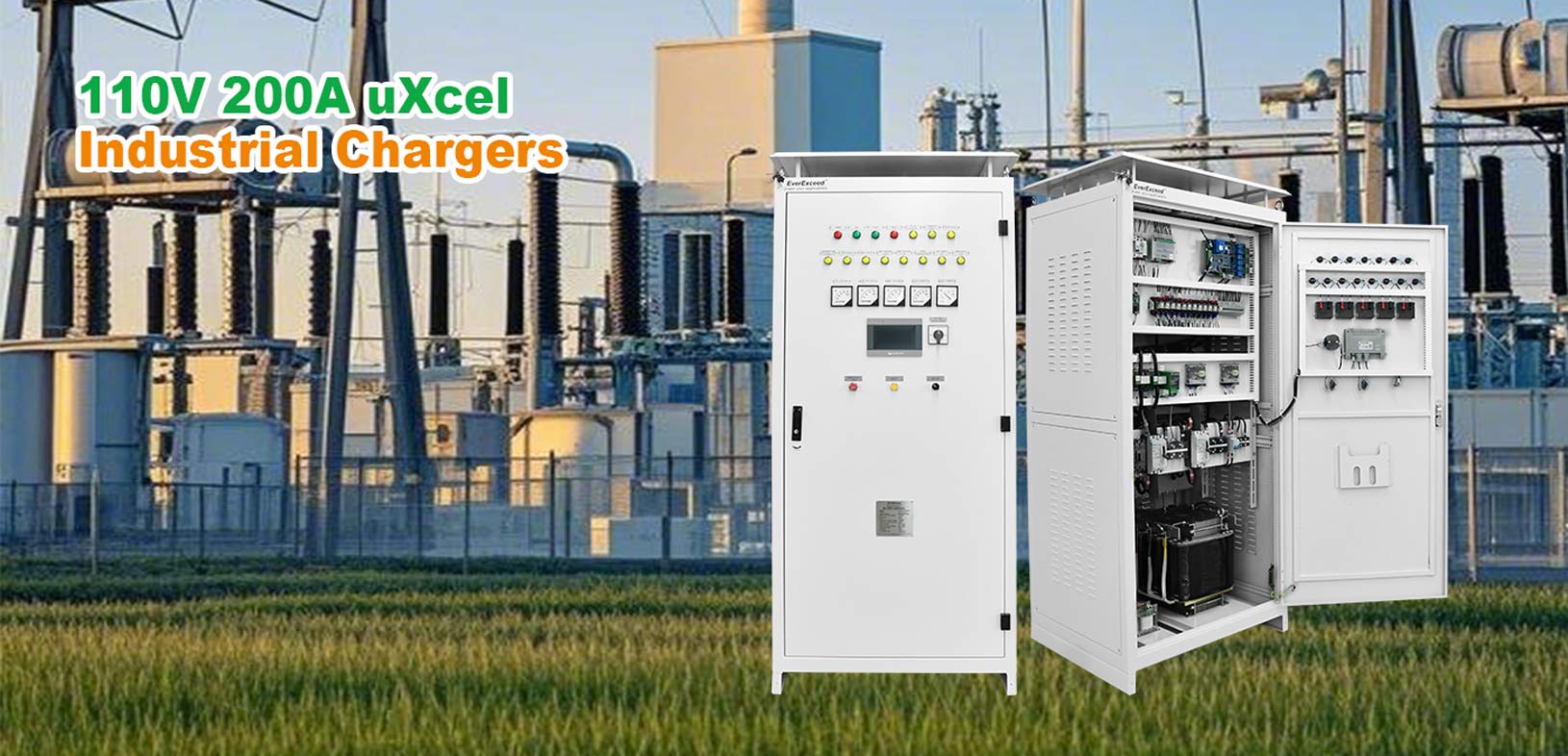

These 110V 200A industrial battery chargers are custom-designed for a paper mill retrofit project in Pakistan. The paper mill is equipped with numerous DC devices such as control and metering units featuring remote switching, telemetry, and monitoring functions.These industrial chargers ensure reliable power supply during power interruptions, helping maintain continuous production, improve paper quality, and reduce defects caused by voltage fluctuations.

Custom design highlights:

Redundant Design: Supports advanced parallel operation with intelligent load sharing, ensuring precise current balance among multiple chargers.

High Reliability: Each charger can be maintained or replaced independently without affecting the operation of others, improving system uptime and flexibility.

High Stability: Utilizes thyristor (SCR) control with advanced trigger circuits for accurate and continuous voltage/current regulation (±1%), ensuring stable output for all DC loads.

Full Protection System: Built-in intelligent monitoring for voltage, current, temperature, and SCR status with overvoltage, overcurrent, overtemperature, and short-circuit protection to ensure operational safety.

Custom Power Distribution Cabinet: Integrated distribution cabinet with high- and low-capacity breakers for safe power allocation, simplified maintenance, and stable DC power supply.

Simplified Structure Design: Compact size for easy installation, maintenance, and disassembly, with a quick cabinet recovery feature. The base is raised 900mm, allowing easy wiring access, efficient ventilation, and preventing rust.

Function and Protection:

Alarm Functions: Charger Failure,DC overvoltage, DC undervoltage, over temperature, Over current.

Protection Features: Overcurrent protection, fuse protection, short-circuit protection, overload protection, etc.

Monitoring Data: Output DC voltage, output BAT current, equalization voltage, float voltage, etc. At the same time, the industrial battery charger has the function of storing certain data, which can support the customer to check the alarm event and download it at any time.

Panel Indication: Intelligent touch screen with alarm indicators, operation status, and power status indicators.

Communication: MODBUS TCP/IP, Modbus RTU.

Design Life: The charger can run continuously without trouble for up to 200,000 hours under suitable maintenance condition.
