48V 51.2V 100Ah 3U Rack LiFePO4 Battery 5kWh Lithium Battery for Telecom and Energy Storage Applications

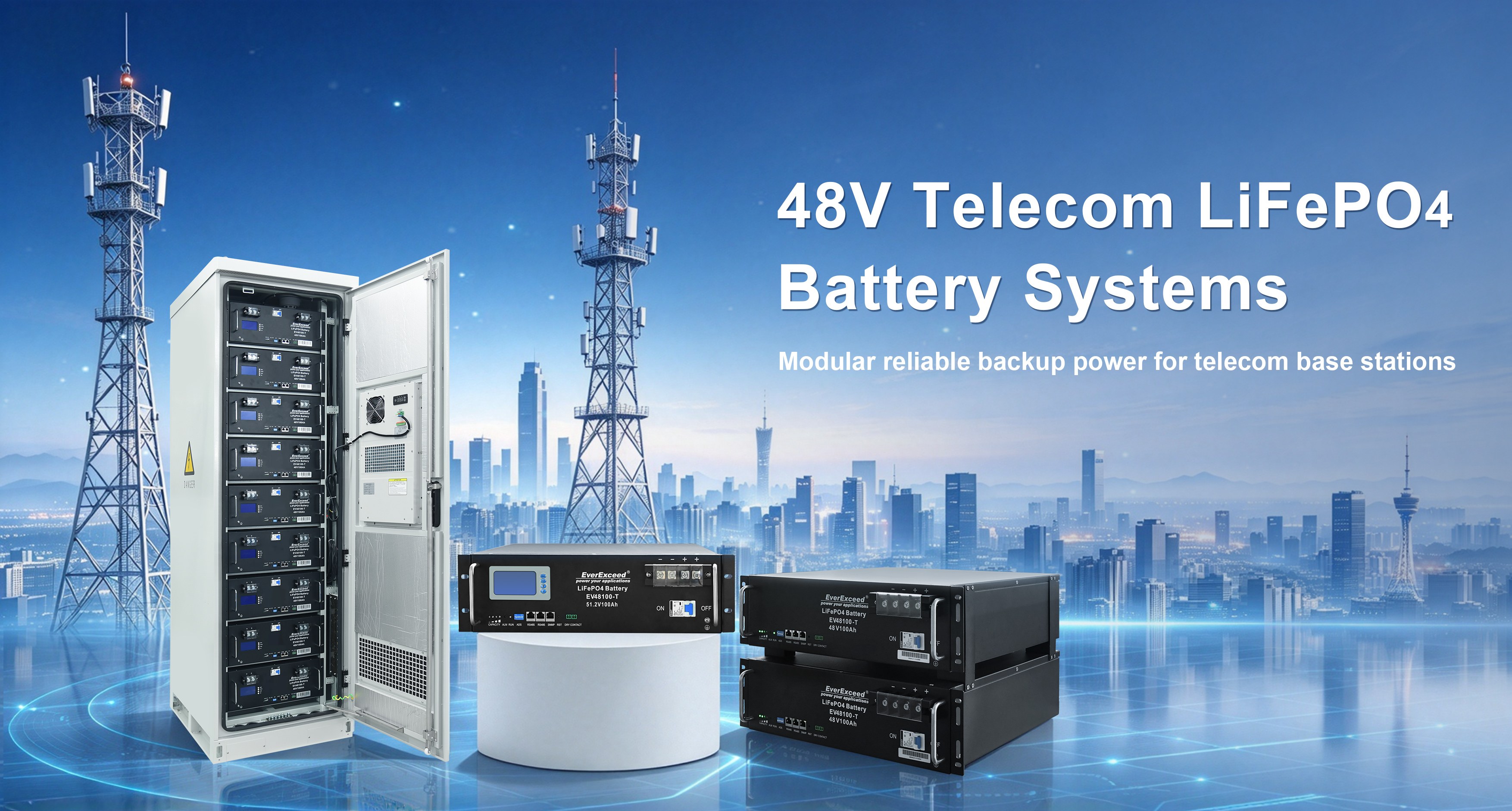

Ensure uninterrupted communication with a reliable LiFePO₄ battery solution designed for telecom backup power. Built with high-performance LiFePO₄ cells and an intelligent BMS, it delivers safe, stable, and long-lasting power for 4G/5G base stations, telecom cabinets, and critical communication systems.

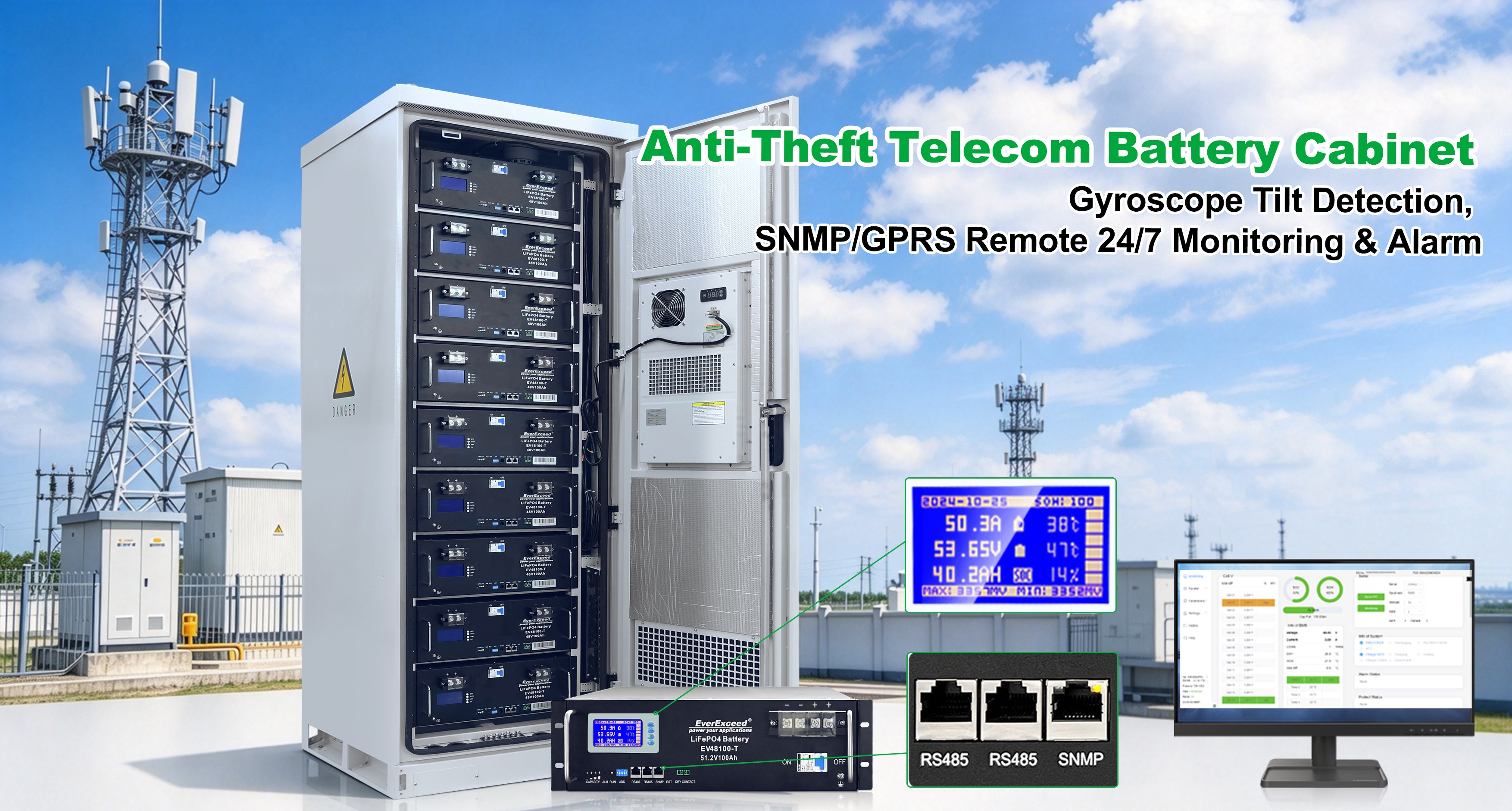

With smart remote monitoring, anti-theft protection, and flexible modular design, it enables real-time battery management, easier maintenance, and scalable deployment to meet the growing demands of modern telecom networks.

Our partner

brand:
EverExceed
Model:
EV48100-T
Rated voltage(V):
48V / 51.2V
Rated capacity(Ah):
100Ah
Certificates:
UN38.3, CE, IEC62619,Rohs
OEM/ODM Service:
Yes, customized
Usage:
Energy storage system;Solar application;Telecom application;Emergency lighting;Medical equipment
Battery Size:
3U

inquiry now

Featuring premium LiFePO₄ cells and advanced BMS technology, it ensures enhanced safety, reliability, and long service life, with a cycle life of over 6000 cycles. Equipped with an intelligent touchscreen and LED indicators, it enables real-time monitoring of battery status and operating information for convenient management and control.

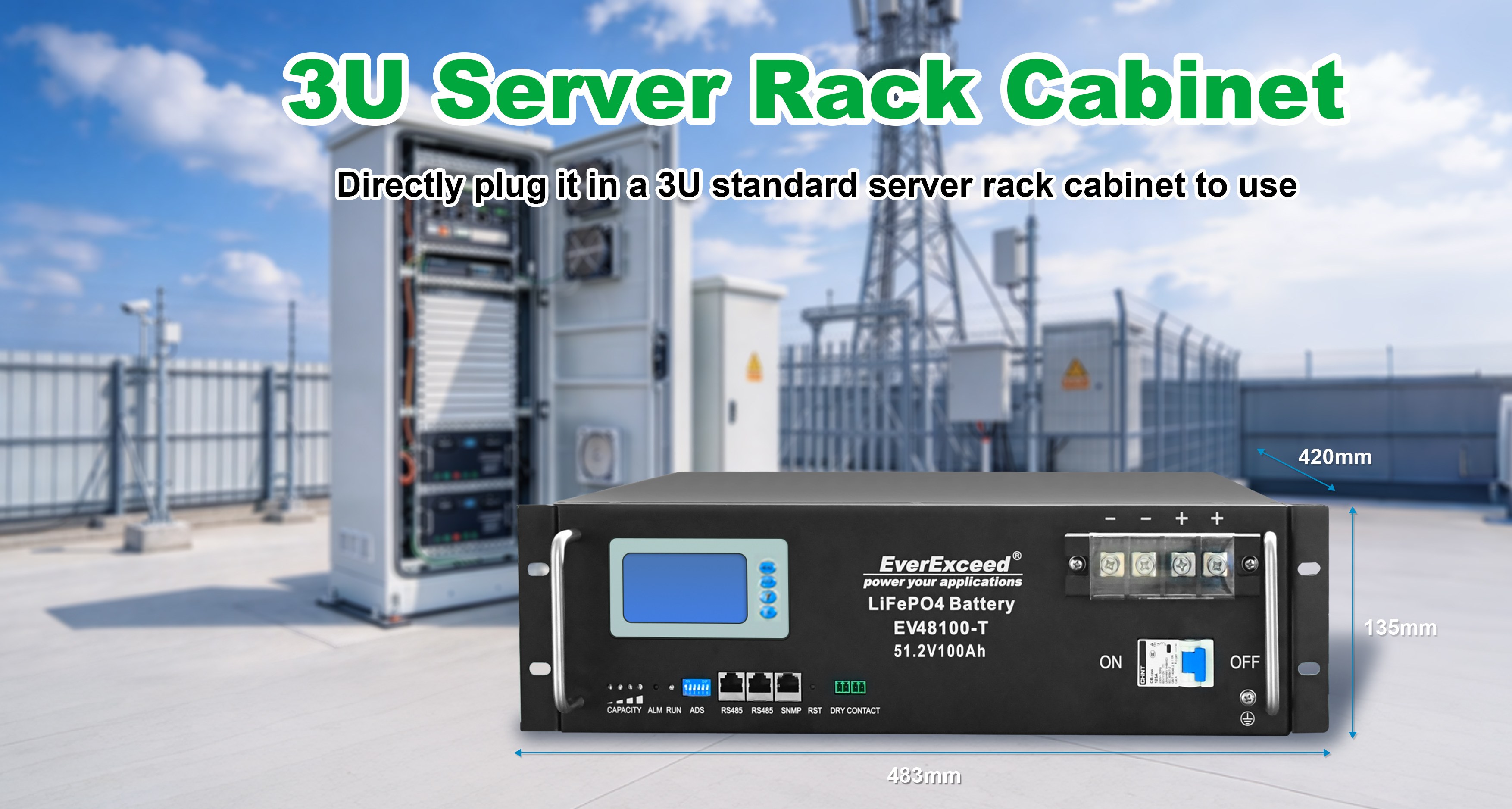

EverExceed 48V (51.2V) 100Ah LiFePO₄ Rack Battery provides flexible and reliable installation options for telecom backup and energy storage applications. Designed with a standard 3U rack-mount structure, it can be easily installed in a server rack cabinet for convenient integration. Customized stacking solutions are also available to meet different project requirements and system configurations.

Power meets endurance—100% capacity-tested for trusted performance, expandable up to 15 packs in parallel for growing energy needs, and built to last with over 6000 cycles of reliable operation.

Nominal Characteristics
Battery Model	EV48100-T	EV48100-T（15S)	EV48100-T(16S)
Nominal Voltage	48V	48V	51.2V
Nominal Capacity	100Ah	100Ah	100Ah
Nominal Energy	4800Wh	4800Wh	5120Wh
Electrical Characteristics
Recommended Boost Charging Voltage	53.5V	53.5V	57V
Floating Float Charging Voltage	52.5V	52.5V	56V
Recommended Charging Current	30A	30A	30A
Maximum Charging Current	100A	100A	100A
Maximum Discharging Current	100A	100A	100A
Operating Conditions
Cycle Life	≥4500 Cycles@100% DOD@25℃	≥6000 Cycles@100% DOD@25℃	≥6000 Cycles@100% DOD@25℃
Roundtrip Efficiency	≥98%	≥98%	≥98%
Operating Charge Temperature	0℃ to +50℃	0℃ to +50℃	0℃ to +50℃
Operating Discharge Temperature	-20℃ to +60℃	-20℃ to +60℃	-20℃ to +60℃
Storage Temperature	-20℃ to +60℃	-20℃ to +60℃	-20℃ to +60℃
Mechanical Characteristics
Length x Width x Height	483x420x135mm	483 x 420 x 133 mm	483 x 420x 133 mm
Weight	39.5kg	40.5Kg	42Kg
Terminal	M6	M6	M6
IP Rating	IP20	IP20	IP20

If you need to download files, you need to register as our member first ! log in / registered

EV48100-T(15S)-3U V2.4 20251126.pdf


Datasheet

1. What type of lithium battery does EverExceed provide for telecom base stations?
EverExceed provides LiFePO₄ (Lithium Iron Phosphate) batteries, known for their exceptional safety, long cycle life, and stable performance, making them ideal for telecom applications.

2. What is the typical service life of EverExceed lithium batteries?
With proper usage and system integration, EverExceed LiFePO₄ batteries can last over 15 years.

3. Are the batteries suitable for harsh environments like deserts?
Yes. EverExceed batteries are installed in IP65-rated outdoor cabinets with optional air conditioning or fan cooling, ensuring stable operation in high-temperature and dusty environments.

4. Can EverExceed batteries integrate with existing telecom power systems?
Yes. Our lithium batteries are compatible with most standard telecom rectifiers and support multiple communication protocols (RS485, CAN, SNMP), enabling smooth integration.

5. How is battery health managed?
Each battery is equipped with EverExceed's advanced BMS (Battery Management System) for real-time monitoring of voltage, temperature, SOC, SOH, and other parameters, ensuring safe and efficient operation.

6. How are the batteries installed in the field?
EverExceed offers fully integrated outdoor cabinet solutions with battery packs, rectifiers, monitoring units, and cooling systems for fast, reliable deployment.

7. Does EverExceed support customized solutions?
Yes. We provide tailor-made telecom power solutions based on project requirements, including capacity, communication interface, cabinet size, and environmental considerations.
