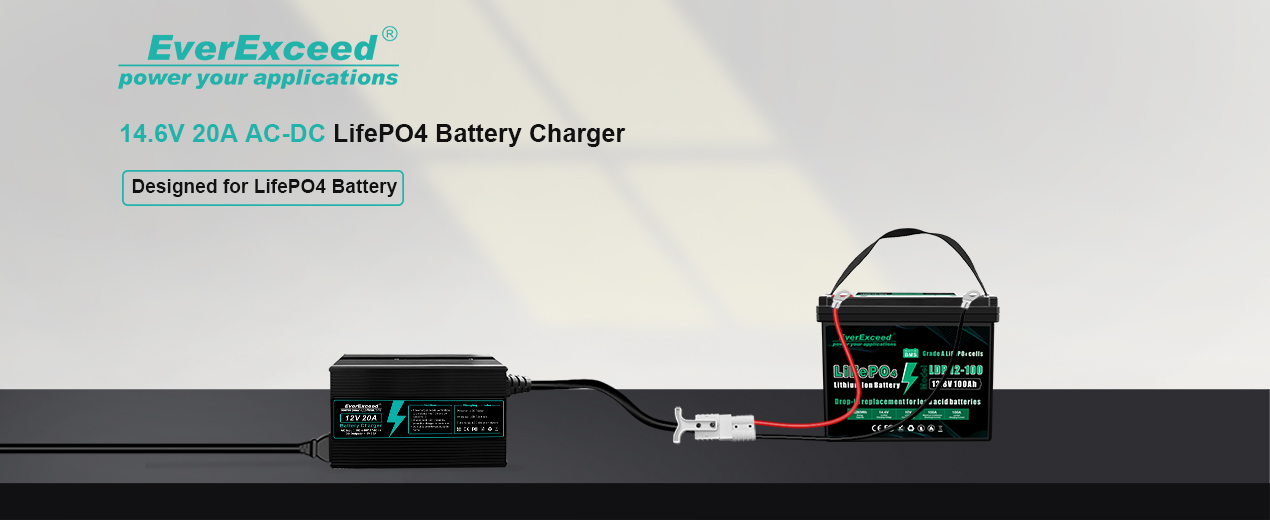

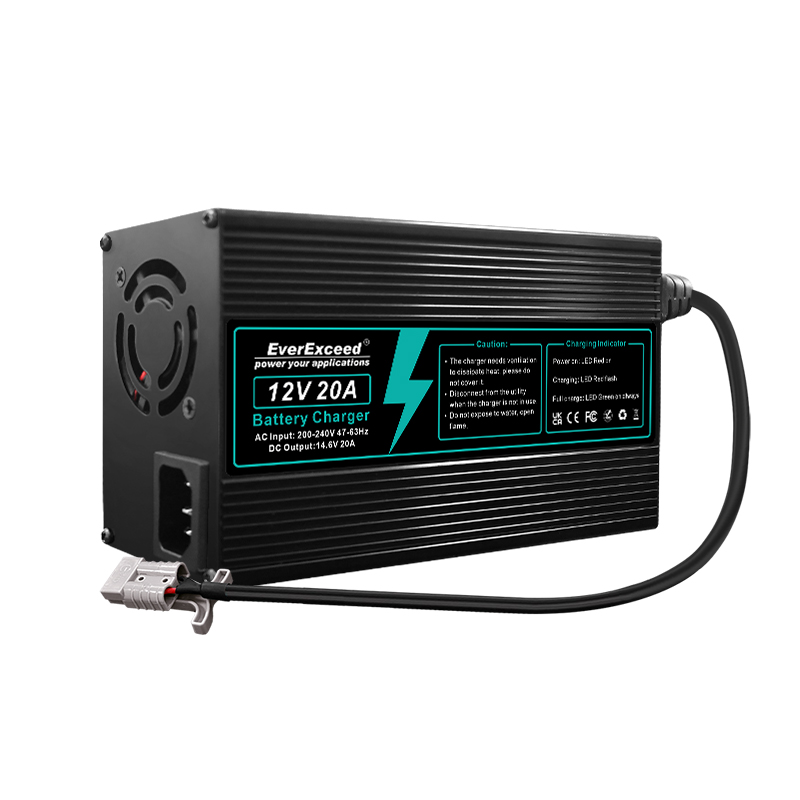

14.6V 20A AC-DC LifePO4 Battery Charger

The EverExceed Smart Lithium Battery Charger is designed to deliver reliable and efficient charging for modern lithium battery applications. With intelligent charging algorithms, advanced protection features, and wide battery compatibility, it ensures optimal performance, longer battery life, and maximum safety.

brand:
EverExceed
Efficiency:
≥91%
AC Input Voltage Range:
200-240VAC

inquiry now

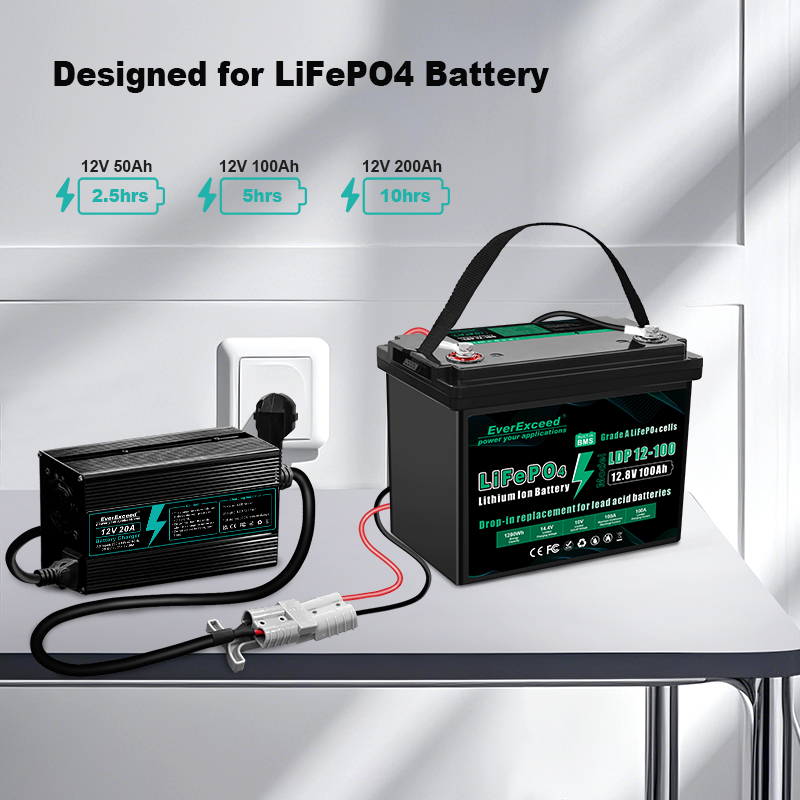

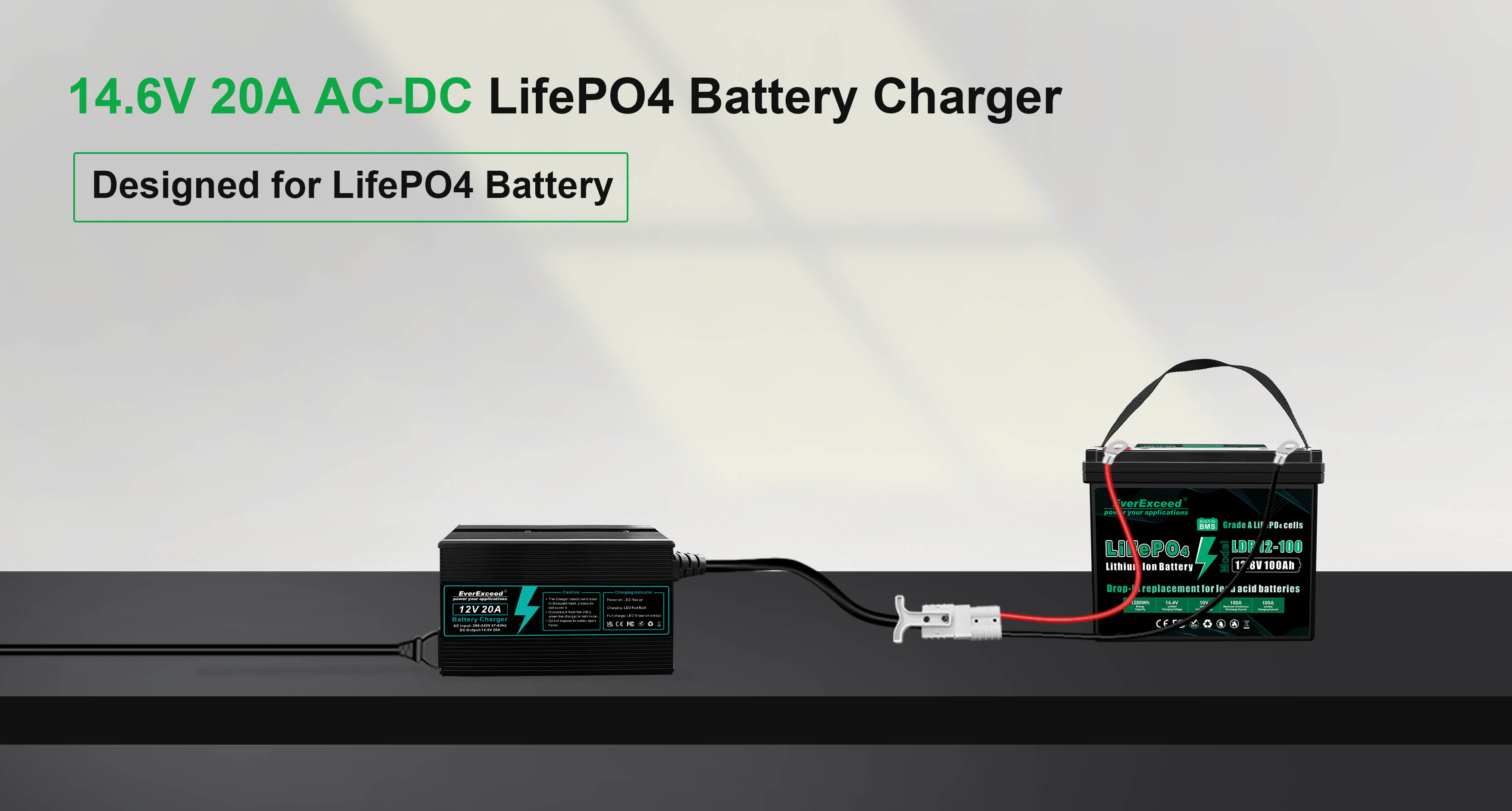

EverExceed Lithium Battery Charger is designed for fast, efficient, and reliable charging of LiFePO₄ and other lithium batteries

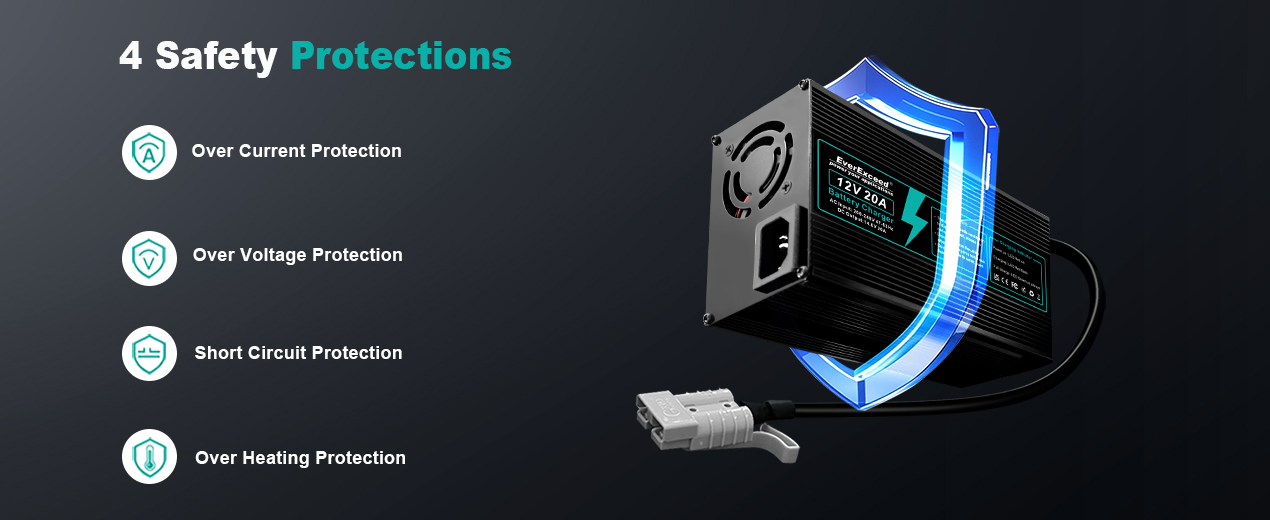

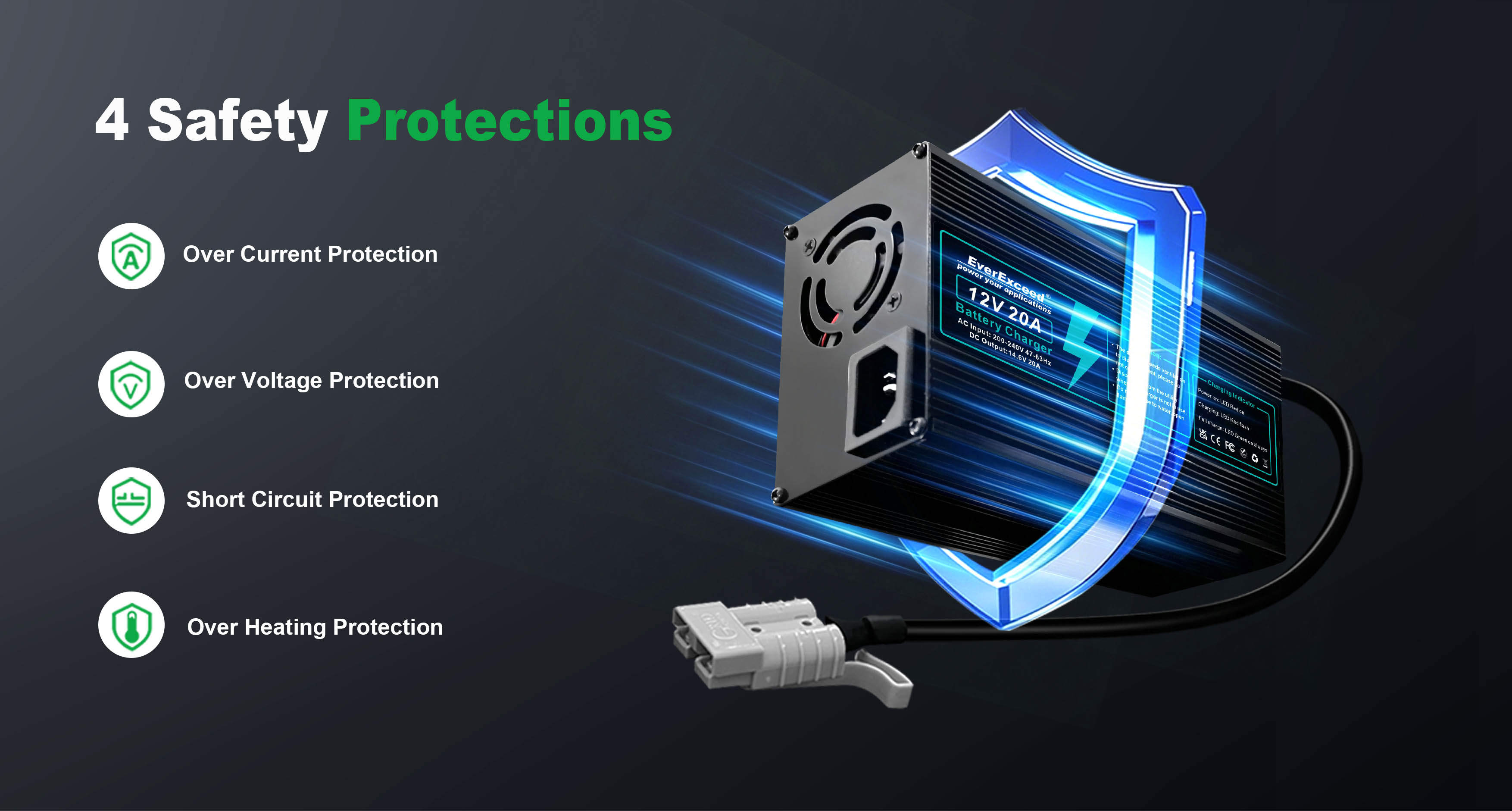

Built with comprehensive protection features to ensure safe and reliable charging performance.

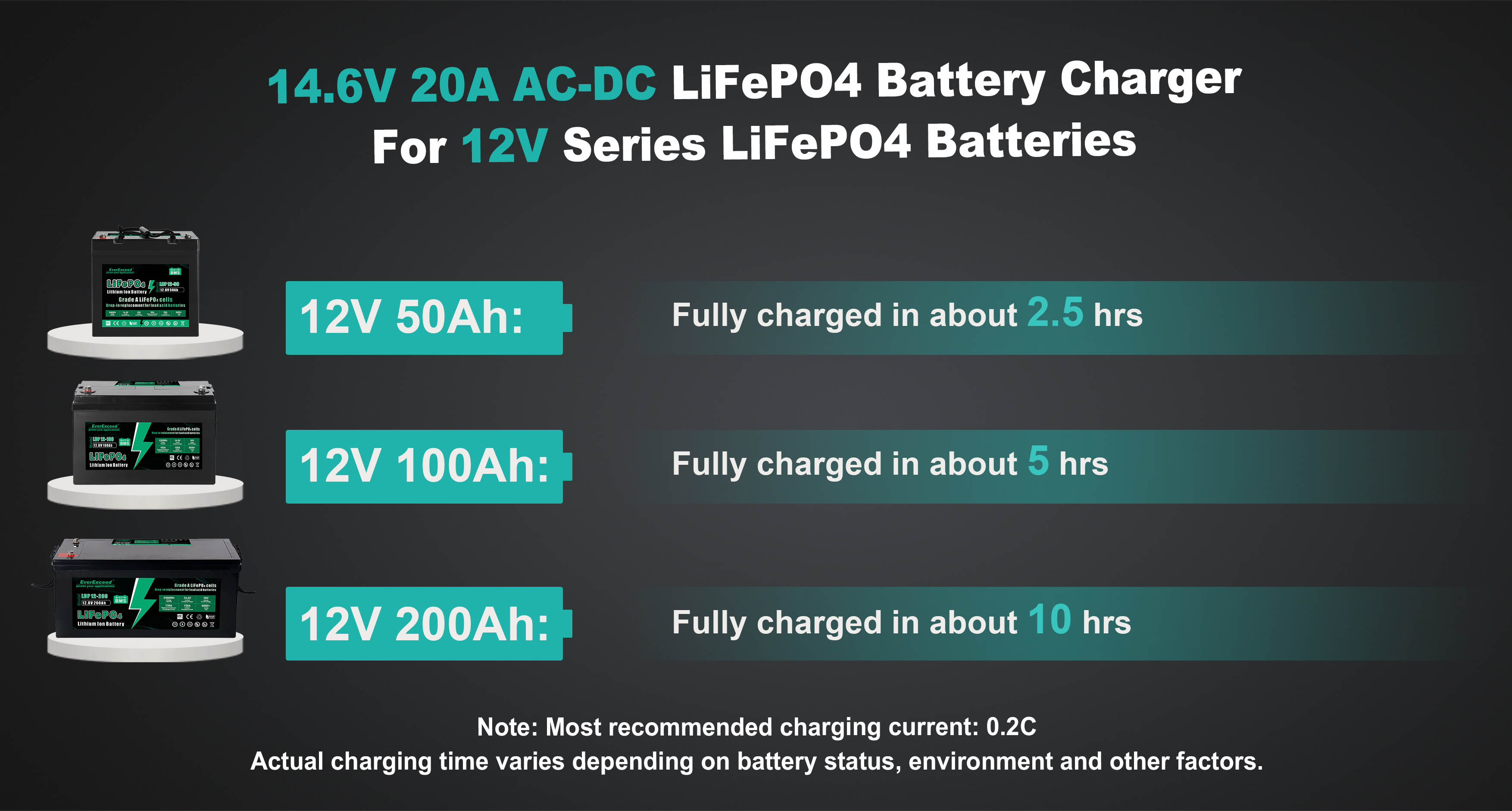

With high-efficiency quick charge technology for rapid energy replenishment and maximum uptime.

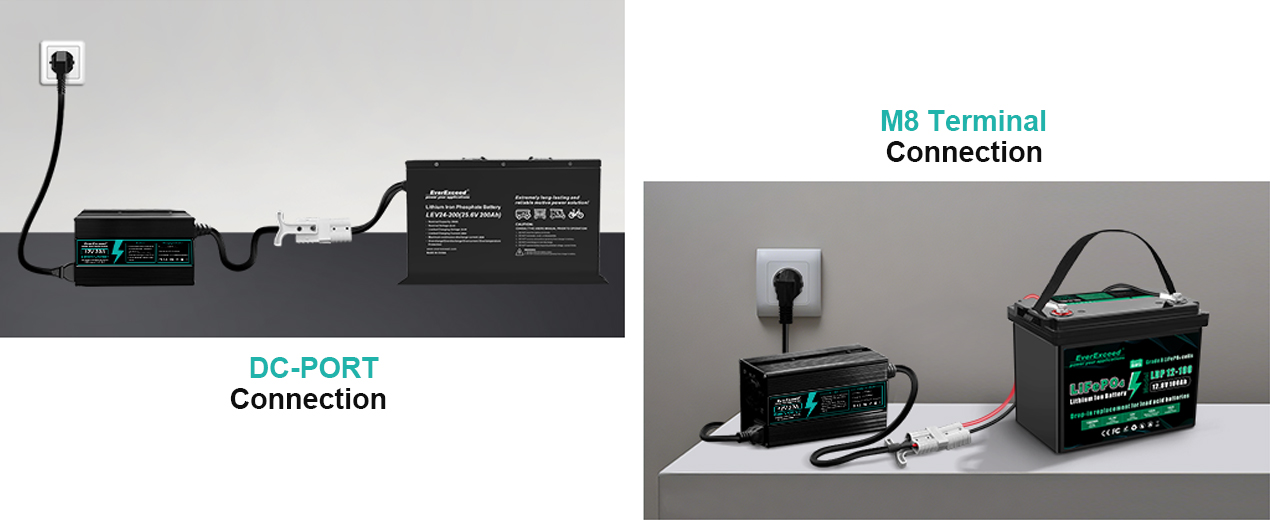

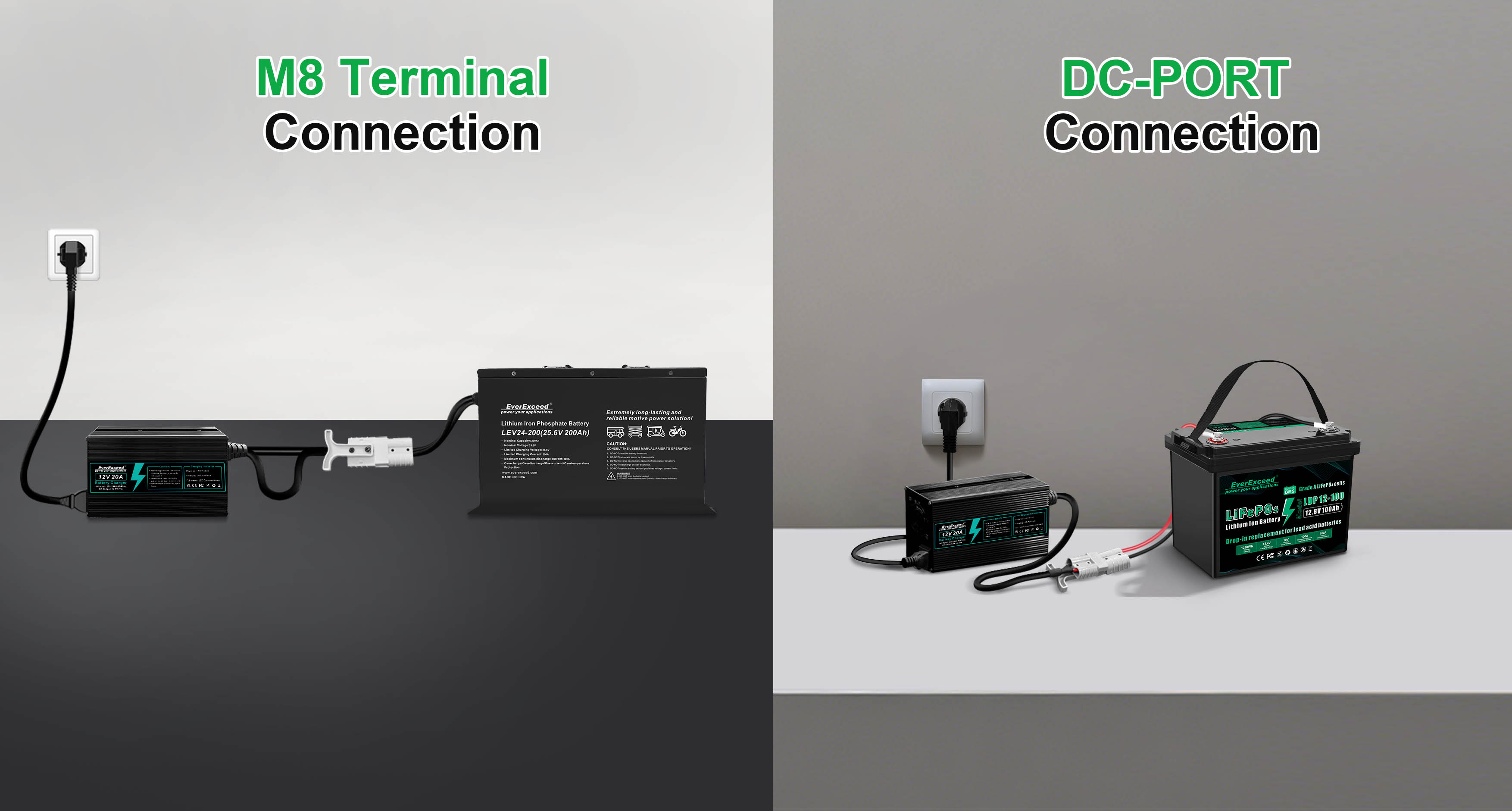

2 kinds of connection options to suit different application needs.

Model	ECA-12V20A
Input Voltage Range	200-240VAC
Input Voltage Frequency	47~63 Hz
Constant Charge Voltage	14.6VDC
Constant Charge Current	20A
Battery Speciﬁcation	LiFePO4
Power Eﬃciency	≥91%
Humidity	20~90%
Altitude	≤2000m
Outline Dimension	17010467 mm
AC Wires	European Standard Plug, 1.5 m
DC Wires	Anderson,4mm²1m Anderson-M8,4mm²0.5m
Weight	1.25 kg / 2.76 LB
Operating Temperature	-10℃ ~ +40℃
Storage Temperature	-40℃ ~ +70℃
Storage Temperature	-40℃ ~ +70℃

If you need to download files, you need to register as our member first ! log in / registered

Datasheet

What battery capacities can it charge?

The charger is suitable for batteries from small to large capacities, depending on the model.

Is professional installation required?
No, the charger is easy to connect, but always follow the user manual for safe installation.

What do the indicator lights mean?
A steady light indicates normal charging, a blinking light indicates a fault, and the color may vary depending on the model.

How long is the charger expected to last?
With proper use, it can last many years; lifespan may vary depending on operating conditions.
