NiCd Battery

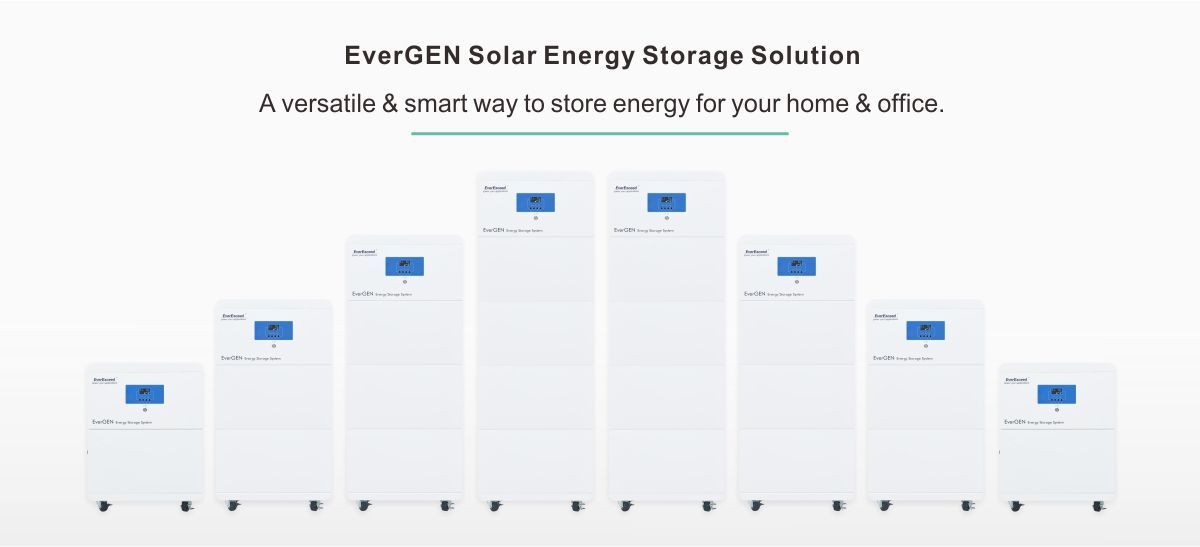

EverGen Solar Energy Storage Solution with VRLA Battery

EverExceed EverGen Series has the best backup energy storage solution to solve all the power problems where grid connection is not stable & reliable. It is a perfect replacement for your portable generator to eradicate the fuel cost, noise pollution and environment pollution with smoke and bad smell effectively.

  • brand:

    EverExceed
  • Model:

    EGS3K-2.4E/EGS3K-3.6E /EGS3K-5E/EGS5K-5E/EGS5K-7.2E/EGS5K-10E
  • Inverter Power:

    3500W/5500W
  • Battery Energy:

    100Ah/150Ah/200Ah
  • Battery module capacity:

    4
  • Application:

    Home, apartment or villa; Shops and groceries for small business;, Small office or enterprise; Bank, ATM or financial institute; Clinic, health care or medical centers;School or baby care center
  • Features
  • TECHNICAL DATA

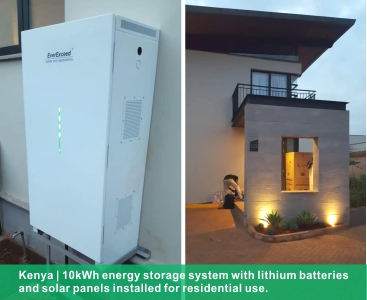

  • SUCCESSFUL CASES
  • Download



Key Features






Save up to 100% electricity cost

24/7 uninterruptible power supply

Easy and quick installation

The sun delivers valuable energy to your home every single day - completely free of charge. A PV rooftop system combined with our energy system allows you to generate and use electricity for your home, save up to 100% on your energy costs, and actively help shape the energy transition.
With the EverExceed perfect combination of high-quality inverter and battery, ensure you don't lose power ever. Now power all of your desired applications.
Modular type design and Pre-installed at the factory for faster and easier installation.Only requires 30minutes for 1person to finish the installation procedure.



Smart & visualized management of your energy

Child & pet friendly

High performance deep cycle VRLA Battery

Support mobile APP smart monitoring, help you to easily manage the energy at your finger tips.
All in one design, completely safe from inside out. Can be easily placed inside home, no risk for your precious children to touch and damage.
800cycles at 80% D.O.D



Scalable & modular batteries

Solar power charge

Seamless backup

Maximum 4pcs of deep cycle battery box. 2 batteries in each box.
Maximum 6KW solar panel input
Transition time is less than 20ms

Operational diagram



Application

● Home, apartment or villa; .
● Shops and groceries for small business;
● Small office or enterprise;
● Bank, ATM or financial institute; .
● Clinic, health care or medical centers;
● School or baby care center



Model EGS3K-2.4E EGS3K-3.6E EGS3K-5E EGS5K-5E EGS5K-7.2E EGS5K-10E
System Specification
Rated AC Output Power 3500VA/3500W 5500VA/5500W
Surge AC Output Power 7000VA 11000VA
Total Energy Capacity 2.4kWh 3.6kWh 4.8kWh 4.8kWh 7.2kWh 9.6kWh
Battery Type Deep Cycle Lead Acid Battery
Max. AC Charging Current 80A
Max. PV Charging Current 100A
Max. Total Charging Current 180A
Operating Temperature -20 to 60
Storage Temperature -30 to 70
Remote Monitoring WiFi & APP (Optional)
Relative Humidity 0~95%(no condensation)
Operating Altitude  2000m
Protection Degree IP21
System Dimension Width 600mm 600mm
Depth 400mm 400mm
Height 800mm 1200mm
PV String Input Specification
Max. PV Input Power 5000W 6000W
Max. PV Input Voltage 500VDC
MPPT Voltage Range 120 to 450VDC
Max. PV Charging Current 100A
Number of MPPTs 1
Number of Strings per MPPT 1
Inverter Specification
Rated AC Output Power 3500W 5500W
Surge AC Output Power 7000VA 11000VA
Rated Battery Input Voltage 24VDC 48VDC
AC Input Voltage 90Vac to 280Vac
AC Output Voltage 230Vac
Rated Frequency 50 / 60Hz
Max. AC Charging Current 80A
Power Factor 1.0
Norminal Output Wave Form Pure Sine Wave
Transfer Time 15ms
Output THDi <3%
Max. PV to Load Efficiency 97%
Max. Battery to Load Efficiency 94%
Battery Specification
Battery Model FT12V100B FT12V150 FT12V200 FT12V100B FT12V150 FT12V200
Norminal Capacity 100Ah 150Ah 200Ah 100Ah 150Ah 200Ah
System Norminal DC Voltage 24V 48V
Battery Quantity 2 4
Total Energy Capacity 2.4kWh 3.6kWh 4.8kWh 4.8kWh 7.2kWh 9.6kWh
Cycle Life >800 cycles@80% DOD



If you need to download files, you need to register as our member first ! log in / registered

  • EverGEN Solar VRLA Series ESS V1.2 2022.06.17.pdf
Leave a message
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
Related products
r
EverExceed, as a world-class enterprise,established in 1985, operations on six continents.
Uninterrupted power supply

6-20kVA PowerLead2 Series Online UPS

6-20kVA PowerLead2 Series Online UPS 220/230/240VAC, 1:1 PowerLead2 series power supply adopts online double conversion design and digital control technology and it features high input and output power factor, self-adaptive output frequency according to input frequency,intelligent battery management and excellent network management.
Poly Solar Panel

6 inch 72 cells(290~330W) Poly Solar Panel

EverExceed 156x156 Poly Solar photovoltaic modules are built with EverExceed's highly regulated manufacturing standards and latest Standard technology. EverExceed's Polycrystalline Standard Modules are built to deliver the most cost effective performance. Pluto's extra fine cell fingers (~30μm), reduce surface shading and boost sunlight absorption into the cell and give the product a sleek appearance.
UPS

0.4-3kVA Power Aurora Series UPS

0.4-3kVA Power Aurora Series UPS 220/230/240VAC, 1:1 PowerAurora Series UPS is an off-line UPS with the most advanced DSP control technology which can protect the sensitive device from utility fail, over/under voltage, surges, transients, spikes and other electrical abnormalities. With automatic boot voltage regulation and wide input voltage range, PowerAurora is a good choice to be applied to all kinds of complex power environment.
3KVA Online UPS

1-3kVA PowerLead2 Series Online UPS

1-3kVA PowerLead2 Series Online UPS 220/230/240VAC, 1:1 PowerLead2 series power supply adopts online double conversion design and digital control technology and it features high input and output power factor, self-adaptive output frequency according to input frequency,intelligent battery management and excellent network management.

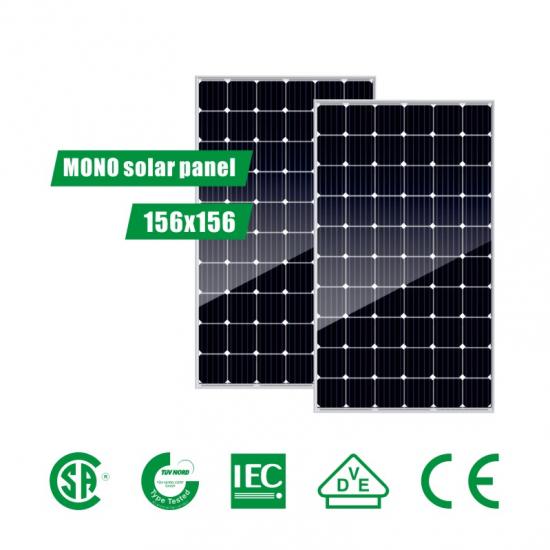

Mono Solar Panel
